Rain Bird® R-VAN Adjustable Rotary Nozzles save more water, are easier to use, and are lower priced compared to leading rotating nozzles. They’re an excellent water-saving option for contractors & homeowners. The R-VAN’s thick streams and large water droplets cut through the wind to deliver water where you want it & they’re are easier to use thanks to its hand-adjustable arc and radius. R-VANs are also super versatile, with only two nozzle options to cover areas from 45° to 360° coverage vs. the leading rotating nozzle brand.

We’ve created an R-VAN Nozzle start kit which is perfect for contractors, and you can say goodbye to loose nozzles rolling around the back of your ute!

Our Rain Bird R-Van Starter Kit includes the following 90 Nozzles:

  • 20 x R-VAN14: 45° – 270° Adjustable Arc
  • 20 x R-VAN18: 45° – 270° Adjustable Arc
  • 20 x R-VAN24: 45° – 270° Adjustable Arc

Plus:

  • Rain Bird R-VAN Organiser Box (optional)



Rain Bird R-VAN Starter Kits

Rain Bird R-VAN Nozzle Organiser Box SKU: ISA-RBRVANBOX $99.00
$165.00
Rain Bird R-VAN Nozzle Organiser Box
SKU ISA-RBRVANBOX

In stock

Only
$99.00

$165.00
SPECIAL Rain Bird R-VAN Starter Kit (Inc 60 Nozzles) SKU: ISK-RBRVANSTARTER $486.00
$1051.97
Rain Bird R-VAN Starter Kit (Inc 60 Nozzles)
SKU ISK-RBRVANSTARTER

In stock

Only
$486.00

53.80%
SPECIAL Rain Bird R-VAN Starter Kit (Inc 60 Nozzles + Box) SKU: ISK-RBRVANSTARTERBOX $570.00
$1200.47
Rain Bird R-VAN Starter Kit (Inc 60 Nozzles + Box)
SKU ISK-RBRVANSTARTERBOX

In stock

Only
$570.00

52.52%

Product Description

Rain Bird® R-VAN Adjustable Rotary Nozzles save more water, are easier to use, and are lower priced compared to leading rotating nozzles. They’re an excellent water-saving option for contractors & homeowners. The R-VAN’s thick streams and large water droplets cut through the wind to deliver water where you want it & they’re are easier to use thanks to its hand-adjustable arc and radius. R-VANs are also super versatile, with only two nozzle options to cover areas from 45° to 360° coverage vs. the leading rotating nozzle brand.

We’ve created an R-VAN Nozzle start kit which is perfect for contractors, and you can say goodbye to loose nozzles rolling around the back of your ute!

Our Rain Bird R-Van Starter Kit includes the following 90 Nozzles:

  • 20 x R-VAN14: 45° – 270° Adjustable Arc
  • 20 x R-VAN18: 45° – 270° Adjustable Arc
  • 20 x R-VAN24: 45° – 270° Adjustable Arc

Plus:

  • Rain Bird R-VAN Organiser Box (optional)



Main Menu

$0

0

Videos

YouTube video

Product Specifications

Rain Bird R-VAN Nozzle Organiser BoxRain Bird R-VAN Starter Kit (Inc 60 Nozzles)Rain Bird R-VAN Starter Kit (Inc 60 Nozzles + Box)
Product TypeNozzle BoxAdjustable Rotary NozzleAdjustable Rotary Nozzle
Product MaterialPlasticAluminiumAluminium
Product ColourBlackBlack, BeigeBlack, Beige
Product Inlet Thread Size10mm Female Thread10mm Female Thread10mm Female Thread
Product Min. Flow Output (Lpm)1.101.101.10
Product Max. Flow Output (Lpm)8.968.968.96
Product Min. Recommended Pressure (kPa)210210210
Product Max. Recommended Pressure (kPa)380380380
Product Min. Spray Radius (m)2.42.42.4
Product Max. Spray Radius (m)7.37.37.3

Low Flow Rotator Nozzles, Sprinkler Nozzles, Sprinkler Tools & Accessories FAQs

There’s no best type of sprinkler, just better sprinklers for different applications. Gear Drives are better for large areas, over 5m. Pop-Ups are ideal for 1.5-5m & Micro sprays are excellent for anything under that.

The type of nozzle all depends on how far you need to spray, each nozzle is specified by the radius it sprays & the spray arc it provides (0-360 degrees). Aim to spray to the base of the next closest sprinkler for even watering. For more information on planning, check out our Product Guides.

Each sprinkler & nozzle will push out water at different rates, but the key factor is the flow rate of your water supply. Work that out with a simple timed bucket test. From there, you can work out how much water each sprinkler you’re looking at uses & work within your flow limit. For more information, check our Product Guides.

As you install a system, it’s almost inevitable that small fragments of dirt will get into the pipe, for this reason you should always flush out the system before running it the first time. This can be done by leaving an open end at the farthest point of each irrigation zone & operating the zone for 15 or so seconds to flush it out. Then plug it up & you’re good to go! This can also be said for any other times dirt may have gotten into the system (eg: further irrigation repairs or a mains water supply fault).

We definitely don’t recommend it. Typically, drip tube will deliver the water at a far slower rate that sprays. Because of this, if you were to have both on the same zone, the areas with drip would be left far drier than the areas with sprinkler coverage. If you do want to water some areas with drip & some with sprinklers, it can be done, but each will just need to be run on their own separate irrigation zones.

Firstly, each sprinkler &/or nozzle has a specified spray radius. Secondly, sprinklers are typically designed to deliver more water at their base & progressively less the further away you get. For this reason, you want to position sprinklers so they spray to hit the base of the next sprinkler. Of course this isn’t possible all the time so in those cases, aim to spray at least 80% of the way. By doing this you will guarantee even water across your lawn or garden.

Even on a typical domestic system running on mains water a filter is still a good idea. In the event of a water main fault where rubbish does find it’s way down the line, a filter will protect the system from blockage and or failure. On systems operating off recycled water, like from a tank, a screen filter is mandatory. Debris like silt & dirt from recycled water is the most common cause of blockages of failures in irrigation systems.

Spray irrigation mimics natural rainfall by distributing water through a system of sprinklers and pipes. A pressurised water source – either mains supply, or from a pump – forces water through pipework and out of the water sprinkler nozzles, creating a spray that falls onto the landscape. This method efficiently delivers water to a wide area, ensuring even coverage and promoting healthy plant growth.

Spray irrigation systems, or sprinkler systems, distribute water through above-ground sprinklers, creating a wide spray pattern covering a larger area. This makes it efficient for watering lawns and large garden beds where uniform coverage is desired. However, this setup can lead to water loss through evaporation and wind drift, especially in hot or windy conditions.

Drip irrigation, on the other hand, delivers water directly to the plant roots through a grid of tubes with embedded emitters. This direct delivery approach is ideal for watering specific plants, rows of vegetables or areas with irregular shapes. By delivering water slowly and directly to the root zone, drip irrigation promotes deeper root growth and reduces weed germination. Please keep in mind that this system may not be suitable for large lawns, overly sandy areas or areas that require overhead watering.

Regular maintenance ensures your spray irrigation system operates efficiently and provides optimal watering for years to come. Start by periodically inspecting your system for leaks, clogged nozzles and damaged heads. Clear any debris obstructing the spray heads and adjust sprinkler heads to ensure proper coverage. It’s also important to flush your system occasionally to remove any sediment buildup. And although not typical for the Australian climate, some people may need to winterise their system in colder climates by draining the water to prevent pipes from freezing and cracking.

While many maintenance tasks can be performed by homeowners, consider scheduling professional maintenance at least once a year. A qualified technician can thoroughly inspect your system, identify potential problems and perform necessary repairs or adjustments to optimise performance and water efficiency.

To choose the right irrigation system, consider the size and layout of your garden or lawn, the types of plants you’re watering and your water source. Spray systems are ideal for most applications like lawns and gardens, while drip irrigation works well for mulched garden beds and areas exposed to wind and evaporation. For expert advice tailored to your needs, request a quote from us.

To set up an irrigation system, start by planning the layout, then install the mainline pipes, valves and fittings. Attach the sprinklers, drip emitters or other irrigation devices, and connect the system to a controller. Finally, test and adjust the system to check for proper coverage and efficiency. For a more precise and tailored setup, visit our Design Department. Our experts can design and quote a customised irrigation system that perfectly fits your landscape.

Rain Bird R-VAN Starter Kits·Rain Bird R-VAN Starter Kits·

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Simon B.

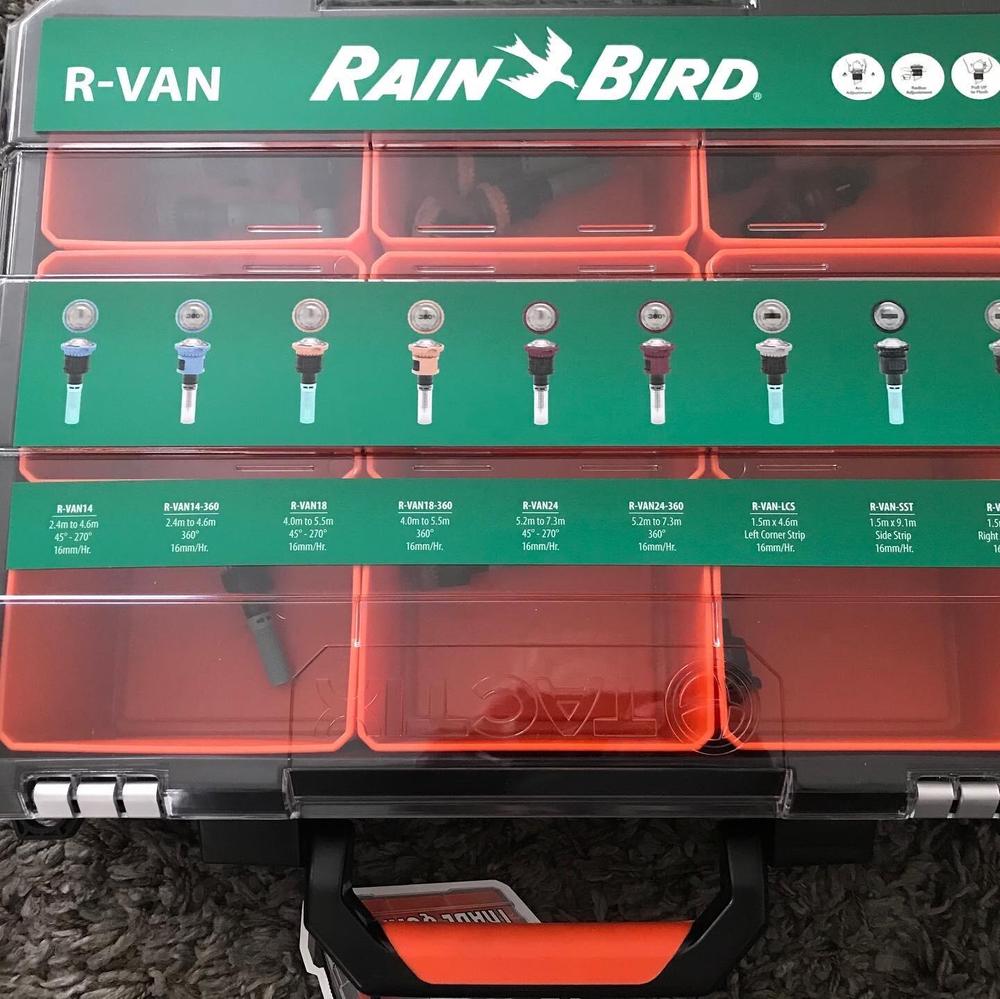

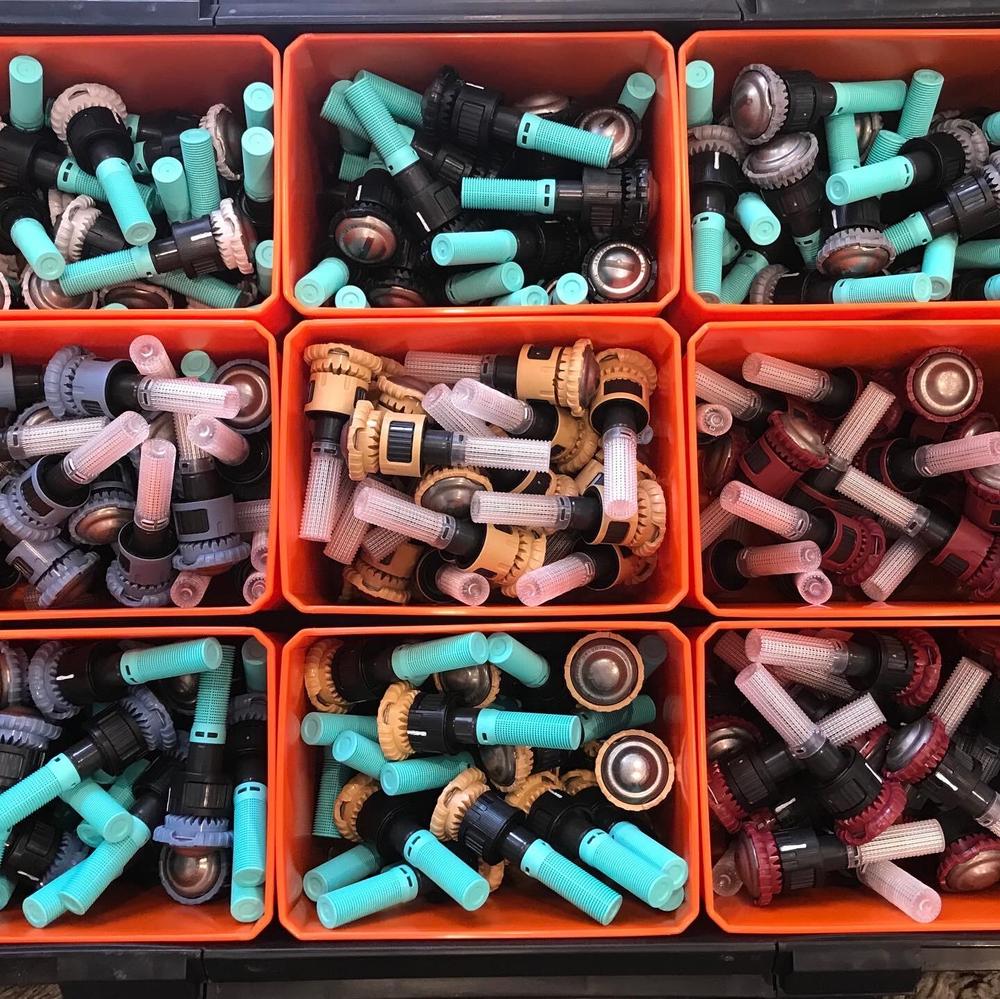

Super way to store your Nozzles

If you want a way to store your Rain Bird R-VAN nozzles so they don't rattle around in the back of your truck these are perfect.

I love the fact that my kit has the tech specs on the little boxes, I would reccomend it to anyone that needs a solution for storing their R-VAN's
