These General Purpose Brass Gate Valves are rated for use with mains pressure, unlike ball valves they can be adjusted more accurately if you want a particular level of flow. They are most commonly used to shut off sections of pipe to allow repair, replacement or removal of parts that need servicing. Other than for use with water mains connections, these valves can also be used on water tank installations so the pump can easily be removed or the water supply can easily be shut off.
- Working temperature 1°C to 120°C
- Maximum pressure rating 1600 KPa
Larger sizes available on request.
If you are unsure of the size of the valve you need, please see this link: How to measure BSP threads and PVC Pipe

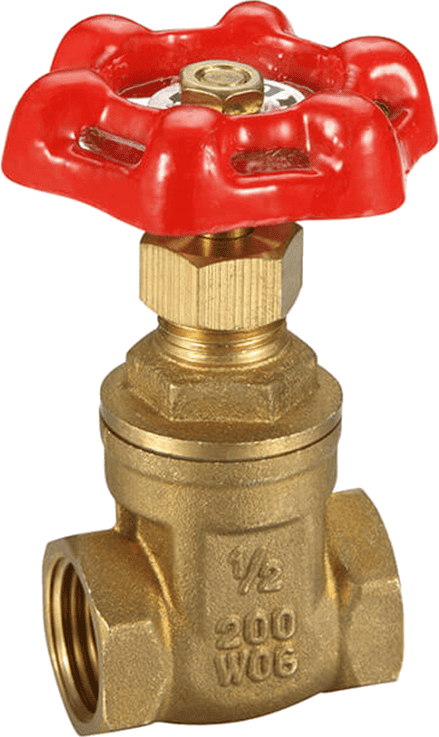

Brass Gate Valves
| Brass Gate Valve 15mm SKU: FBV-GATE15 |
$10.34 $18.10 |
| Brass Gate Valve 20mm SKU: FBV-GATE20 |
$13.55 $23.72 |
| Brass Gate Valve 25mm SKU: FBV-GATE25 |
$19.84 $34.73 |
| Brass Gate Valve 32mm SKU: FBV-GATE32 |
$27.26 $47.71 |
| Brass Gate Valve 40mm SKU: FBV-GATE40 |
$35.75 $62.57 |
| Brass Gate Valve 50mm SKU: FBV-GATE50 |
$54.12 $94.71 |
Product Description
These General Purpose Brass Gate Valves are rated for use with mains pressure, unlike ball valves they can be adjusted more accurately if you want a particular level of flow. They are most commonly used to shut off sections of pipe to allow repair, replacement or removal of parts that need servicing. Other than for use with water mains connections, these valves can also be used on water tank installations so the pump can easily be removed or the water supply can easily be shut off.
- Working temperature 1°C to 120°C
- Maximum pressure rating 1600 KPa
Larger sizes available on request.
If you are unsure of the size of the valve you need, please see this link: How to measure BSP threads and PVC Pipe
$0
Videos
Manuals & Links
Product Specifications
| Brass Gate Valve 15mm | Brass Gate Valve 20mm | Brass Gate Valve 25mm | Brass Gate Valve 32mm | Brass Gate Valve 40mm | Brass Gate Valve 50mm | |
|---|---|---|---|---|---|---|
| Product Type | Gate Valve | Gate Valve | Gate Valve | Gate Valve | Gate Valve | Gate Valve |
| Product Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Product Colour | Brass, Green | Brass, Green | Brass, Green | Brass, Green | Brass, Green | Brass, Green |
| Product Inlet Thread Size | 15mm BSPF | 20mm BSPF | 25mm BSPF | 32mm BSPF | 40mm BSPF | 50mm BSPF |
| Product Max. Inlet Pressure (kPa) | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Brass Gate Valves FAQs
Irrigation systems utilise a variety of pipes, each offering unique advantages. Polyethylene (poly) pipe is a popular choice due to its flexibility, durability and suitability for underground installation. Another standard option is the PVC pipe, valued for its corrosion resistance. Interestingly different parts of Australia, have their different preferences! For applications requiring superior strength and durability, such as central water connections, brass fittings and valves are often preferred because they are highly resistant to corrosion and wear. Copper pipes, while less common in modern systems due to their higher cost, are still valued for their exceptional resilience from ground movement.
The size of piping depends on a number of factors, but the main one is the length of the run. Longer pipe lengths also necessitate larger diameters to minimise friction loss. Higher water pressure allows for smaller pipes, but excessively high pressure may require larger sizes to handle the force. Finally, the desired flow rate at the endpoint also influences the pipe size you’ll need. For more comprehensive assistance, please reach out to our experts.
Preventing leaks in your irrigation system starts with using the right fittings for your pipe type and adequately preparing the pipe ends for a secure connection. Apply thread tape to threaded fittings and appropriate sealant for solvent-welded connections. Tighten fittings securely, but avoid over-tightening. Regularly inspect your system for any signs of leaks to address potential issues promptly.
Yes, burying irrigation pipes underground is a common practice and offers several advantages. It protects the pipes from damage, reduces water evaporation and keeps them out of sight for a cleaner landscape aesthetic.
However, it’s crucial to choose the right type of pipe for underground installation. Polyethylene (poly) pipe is specifically designed for this purpose, thanks to its flexibility and durability. Always check local building codes and regulations for any requirements regarding underground pipe installation.
