Product Description
The DAB JINOX range is ideal for water supply applications for water wells, water supply and boosting of domestic systems, agricultural and gardening applications. They are also the perfect option for a single or double story home with a water tank and for supplying your spray reticulation or drip irrigation system.

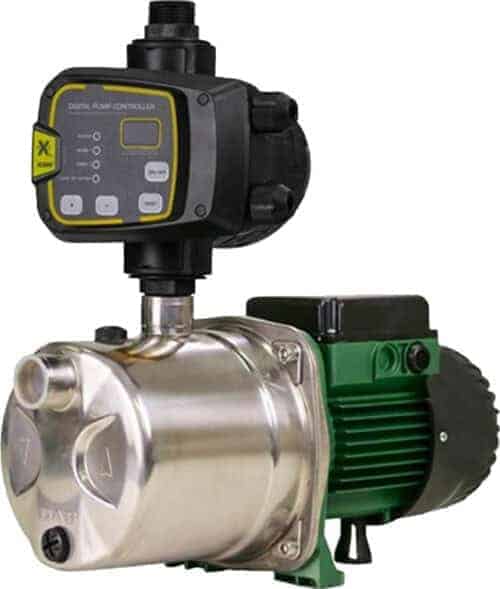

Self priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Suitable for pumping water with low levels of sandy impurities. Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.
Applications
- Household water supply – single and double storey
- Irrigation
- Rainwater tank pumpset
- Water transfer
Features
- Self Priming to 9 metres at sea level
- Electronic pump control with dry run protection and automatic restart
- Constant flow
- 2 Year DAB Pump Warranty
- DAB Pumps Designed In Italy
- AS/NZS 4020 Approved for Drinking Water
Sizing
- DAB Jinox 62MPCI – 45l/min @ 200kPa – 4 Taps / Single Storey
- DAB Jinox 82MPCI – 60l/min @ 200kPa – 5 Taps / Single Storey
- DAB Jinox 102MPCI – 60l/min @ 250kPa – 5 Taps / Single Storey
- DAB Jinox 112MPCI – 55l/min @ 300kPa – 5 Taps / Double Storey
- DAB Jinox 132MPCI – 75l/min @ 250kPa – 6 Taps / Single Storey
DAB Jinox Jet Pumps
| DAB Jinox 62NXTP Jet Pump SKU: RPP-DABJINOX62 |
$1053.36 $2257.20 |
| DAB Jinox 82NXTP Jet Pump SKU: RPP-DABJINOX82 |
$1155.00 $2475.00 |
| DAB Jinox 102NXTP Jet Pump SKU: RPP-DABJINOX102 |
$1201.20 $2574.00 |
| DAB Jinox 112NXTP Jet Pump SKU: RPP-DABJINOX112 |
$1247.40 $2673.00 |
| DAB Jinox 132NXTP Jet Pump SKU: RPP-DABJINOX132 |
$1339.80 $2871.00 |
Product Description
The DAB JINOX range is ideal for water supply applications for water wells, water supply and boosting of domestic systems, agricultural and gardening applications. They are also the perfect option for a single or double story home with a water tank and for supplying your spray reticulation or drip irrigation system.
Self priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Suitable for pumping water with low levels of sandy impurities. Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.
Applications
- Household water supply – single and double storey
- Irrigation
- Rainwater tank pumpset
- Water transfer
Features
- Self Priming to 9 metres at sea level
- Electronic pump control with dry run protection and automatic restart
- Constant flow
- 2 Year DAB Pump Warranty
- DAB Pumps Designed In Italy
- AS/NZS 4020 Approved for Drinking Water
Sizing
- DAB Jinox 62MPCI – 45l/min @ 200kPa – 4 Taps / Single Storey
- DAB Jinox 82MPCI – 60l/min @ 200kPa – 5 Taps / Single Storey
- DAB Jinox 102MPCI – 60l/min @ 250kPa – 5 Taps / Single Storey
- DAB Jinox 112MPCI – 55l/min @ 300kPa – 5 Taps / Double Storey
- DAB Jinox 132MPCI – 75l/min @ 250kPa – 6 Taps / Single Storey
$10.48
$15.73
$32.54
$57.88
$293.80
$405.24
$101.20
$151.80
$0
Product Specifications
| DAB Jinox 62NXTP Jet Pump | DAB Jinox 82NXTP Jet Pump | DAB Jinox 102NXTP Jet Pump | DAB Jinox 112NXTP Jet Pump | DAB Jinox 132NXTP Jet Pump | |
|---|---|---|---|---|---|
| Product Warranty | 2 Year | 2 Year | 2 Year | 2 Year | 2 Year |
| Product Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Product Colour | Black | Black | Black | Black | Black |
| Product IP Rating | IP44 | IP44 | IP44 | IP44 | IP44 |
| Product Inlet Thread Size | 25mm BSPF | 25mm BSPF | 25mm BSPF | 25mm BSPF | 25mm BSPF |
| Product Outlet Thread Size | 25mm BSPM | 25mm BSPM | 25mm BSPM | 25mm BSPM | 25mm BSPM |
| Product Max. Flow Output (Lpm) | 45 | 45 | 45 | 45 | 45 |
| Product Max. Head Height (m) | 42 | 42 | 42 | 42 | 42 |
| Product Power Supply | 240V | 240V | 240V | 240V | 240V |
| Product Output Power | 440W | 440W | 440W | 440W | 440W |
| Product Tap Rating | 4 | 4 | 4 | 4 | 4 |
| Product Type | Pressure Pump | Pressure Pump | Pressure Pump | Pressure Pump | Pressure Pump |
Manuals & Links
Pressure Pumps FAQs
A water pump is a device used to move or transfer water efficiently for various applications, such as irrigation, drainage or household supply. It creates pressure through a motor-driven impeller, drawing water from a source and pushing it through pipes or hoses. Reliable and versatile, water pumps ensure consistent water flow where needed.
Different types of water pumps include:
- Pressure pumps — Boost water pressure for household and irrigation use.
- Sump pumps — Remove water from basements or low-lying areas.
- Transfer pumps — Efficiently move water between tanks or locations.
- Jet pumps — Draw water from wells or deep sources.
- Tank-to-mains systems — Integrate rainwat
Yes, water pumps are perfect for draining pools or ponds efficiently. At SunshowerOnline, we stock a range of pond filtration and maintenance products, including pond filter pumps and pond air pumps, designed to manage water movement and quality. These pumps are versatile, ensuring effective draining and maintaining optimal water conditions for ponds or other aquatic features.
To choose the right water pump, consider your needs:
- For boosting pressure, use a pressure pump.
- For drainage, choose a sump pump.
- For water transfer, opt for a transfer pump.
