Product Description

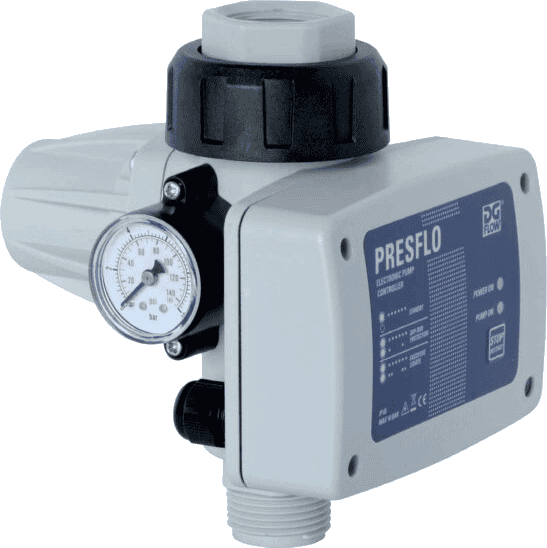

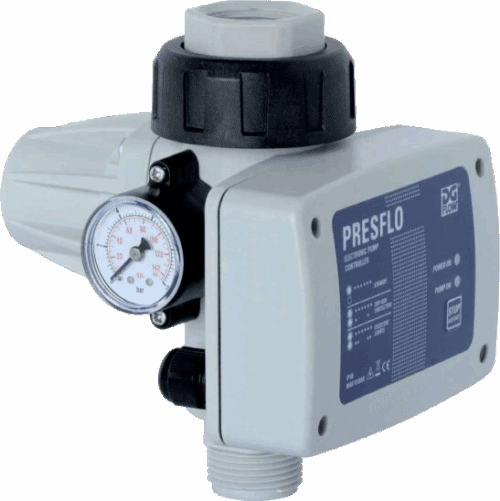

The PresFlo electronic pressure flow regulator starts/stops the pump based on demand. It is capable of satisfying the most varied of needs while guaranteeing the pump works reliably and safely. It substitutes a traditional pressure switch/surge tank system while offering reduced dimensions, no maintenance requirements, constant flow and pump protection.
*Now with Plug & Play leads.
Product Features:
- Spring loaded water accumulator guarantees high level of protection against over pressure and preventing excessive running and stopping. No need to fit air expansion tanks
- Body with built in check valve. Sturdy, techno polymer body, suitable for use in drinking water distribution systems
- Ease of use and monitoring through flashing LEDS and built in pressure gauge
- Tropicalised circuit board assures complete protection against moisture
- Systems protection against dry running and excessively frequent starts
- Available in 1.5 bar and 2.0 bar start pressure models
- Shuts down flow rate of 2 litres per minute
- Max flow rate: 200 l/min
- Voltage: 230 Volt a.c.
- Frequency: 50 Hz
- Max Current: 16 Amp
- IP Protection: IP 65
- Working temperature: 0 – 65 °C
- Connections: 25mm BPSF 3 piece union
- Working/bursting pressure: 10 Bar / > 40 Bar
- Weight: 1.45Kg
- AS4020 Approved
PresFlo Pump Pressure Controllers
| PresFlo PF1615P Pressure Controller (1.5 Bar) SKU: RPA-PF1615P |
$272.25 $544.50 |
| PresFlo PF1622P Pressure Controller (2.2 Bar) SKU: RPA-PF1622P |
$274.23 $548.46 |
Product Description
The PresFlo electronic pressure flow regulator starts/stops the pump based on demand. It is capable of satisfying the most varied of needs while guaranteeing the pump works reliably and safely. It substitutes a traditional pressure switch/surge tank system while offering reduced dimensions, no maintenance requirements, constant flow and pump protection.
*Now with Plug & Play leads.
Product Features:
- Spring loaded water accumulator guarantees high level of protection against over pressure and preventing excessive running and stopping. No need to fit air expansion tanks
- Body with built in check valve. Sturdy, techno polymer body, suitable for use in drinking water distribution systems
- Ease of use and monitoring through flashing LEDS and built in pressure gauge
- Tropicalised circuit board assures complete protection against moisture
- Systems protection against dry running and excessively frequent starts
- Available in 1.5 bar and 2.0 bar start pressure models
- Shuts down flow rate of 2 litres per minute
- Max flow rate: 200 l/min
- Voltage: 230 Volt a.c.
- Frequency: 50 Hz
- Max Current: 16 Amp
- IP Protection: IP 65
- Working temperature: 0 – 65 °C
- Connections: 25mm BPSF 3 piece union
- Working/bursting pressure: 10 Bar / > 40 Bar
- Weight: 1.45Kg
- AS4020 Approved
$0
Product Specifications
| PresFlo PF1615P Pressure Controller (1.5 Bar) | PresFlo PF1622P Pressure Controller (2.2 Bar) | |
|---|---|---|
| Product Type | Pump Controller | Pump Controller |
| Product Power Supply | 240v AC | 240v AC |
| Product IP Rating | IP65 | IP65 |
| Product Start Pressure (kPa) | 150 | 220 |
| Product Max. Flow Output (Lpm) | 200 | 200 |
Manuals & Links
Pump Controllers FAQs
A water pump is a device used to move or transfer water efficiently for various applications, such as irrigation, drainage or household supply. It creates pressure through a motor-driven impeller, drawing water from a source and pushing it through pipes or hoses. Reliable and versatile, water pumps ensure consistent water flow where needed.
Different types of water pumps include:
- Pressure pumps — Boost water pressure for household and irrigation use.
- Sump pumps — Remove water from basements or low-lying areas.
- Transfer pumps — Efficiently move water between tanks or locations.
- Jet pumps — Draw water from wells or deep sources.
- Tank-to-mains systems — Integrate rainwat
Yes, water pumps are perfect for draining pools or ponds efficiently. At SunshowerOnline, we stock a range of pond filtration and maintenance products, including pond filter pumps and pond air pumps, designed to manage water movement and quality. These pumps are versatile, ensuring effective draining and maintaining optimal water conditions for ponds or other aquatic features.
To choose the right water pump, consider your needs:
- For boosting pressure, use a pressure pump.
- For drainage, choose a sump pump.
- For water transfer, opt for a transfer pump.
