This hard working, heavy-duty valve offers the best features of Hunter’s top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the 25 mm is available in either a flow control or non-flow control version. For larger landscape applications, the PGV comes in 40 mm and 50 mm models (with flow control). All models feature durable high-grade construction and a rugged diaphragm with support to prevent stress failure.

Features:

  • External/internal manual bleed allows for quick and easy activation at the valve
  • Double-beaded diaphragm seal design ensures leak-free performance
  • Captive bonnet screws eliminate the possibility of lost parts during disassembly
  • Flow control maximises efficiency and prolongs the life of the system
  • Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
  • Encapsulated solenoid with captive plunger used on every Hunter valve provides hassle-free service
  • Compatible with Accu Sync Pressure Regulator
  • DC Latching Coil valve for use with Battery Operated Controllers

Hunter PGV Solenoid Valves

Hunter PGV Solenoid Valve 25mmSKU: IVL-HUNPGV25$28.63
$47.59

Hunter PGV Solenoid Valve 25mm


SKU IVL-HUNPGV25
MPN PGV100GB
Warranty 12 month

Available in 1-3 Days

Only
$28.63

$47.59
Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.)SKU: IVL-HUNPGV25FC$28.30
$53.36

Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.)


SKU IVL-HUNPGV25FC
MPN PGV101GB
Warranty 12 month

In stock

Only
$28.30

$53.36
Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.)(DC Latching Coil)SKU: IVL-HUNPGV25DC$73.38
$127.58

Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.)(DC Latching Coil)


SKU IVL-HUNPGV25DC
MPN PGV101GBDC
Warranty 12 month

In stock

Only
$73.38

$127.58
Hunter PGV Solenoid Valve 40mm (inc. Flow Cont.)SKU: IVL-HUNPGV40$78.83
$147.71

Hunter PGV Solenoid Valve 40mm (inc. Flow Cont.)


SKU IVL-HUNPGV40
MPN PGV151B
Warranty 12 month

In stock

Only
$78.83

$147.71
Hunter PGV Solenoid Valve 50mm (inc. Flow Cont.)SKU: IVL-HUNPGV50$86.86
$178.60

Hunter PGV Solenoid Valve 50mm (inc. Flow Cont.)


SKU IVL-HUNPGV50
MPN PGV201B
Warranty 12 month

In stock

Only
$86.86

$178.60
Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.) (Bulk Box of 20)SKU: IVL-HUNPGV25FC/20$537.69
$1240.83

Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.) (Bulk Box of 20)


SKU IVL-HUNPGV25FC/20
MPN PGV101GB/20
Warranty 12 month

In stock

Only
$537.69

$1240.83

Videos

Hunter Irrigation Valves Product Guide and Manufacturing
What's inside an irrigation solenoid valve?
Set up your solenoid valves for drip irrigation
The perfect way to join cable for Low Voltage Lighting & Irrigation.
Understanding How a PGV Irrigation Control Valve Works, PGV-101G
How a Hunter Solenoid Works

Specifications

Hunter PGV Solenoid Valve 25mmHunter PGV Solenoid Valve 25mm (inc. Flow Cont.)Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.)(DC Latching Coil)Hunter PGV Solenoid Valve 40mm (inc. Flow Cont.)Hunter PGV Solenoid Valve 50mm (inc. Flow Cont.)Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.) (Bulk Box of 20)
TypeScrew Top Solenoid ValveScrew Top Solenoid ValveScrew Top Solenoid ValveScrew Top Solenoid ValveScrew Top Solenoid ValveScrew Top Solenoid Valve
MaterialPlasticPlasticPlasticPlasticPlasticBlackPlastic
ColourBlackBlackBlackBlackBlackBlack
Inlet Thread Size25mm BSPF25mm BSPF25mm BSPF40mm BSPF50mm BSPF25mm BSPF
Outlet Thread Size25mm BSPF25mm BSPF25mm BSPF40mm BSPF50mm BSPF25mm BSPF
Min. Flow Output (Lpm)0.70.70.77575.7
Max. Flow Output (Lpm)150150150450570150
Max. Inlet Pressure (kPa)100010001000100010001000
Min. Recommended Pressure (kPa)150150150150150150
Max. Recommended Pressure (kPa)100010001000100010001000
Power Supply24v AC24v AC12v DC Latching24v AC24v AC24v AC

Domestic Irrigation Valves FAQs

What is a solenoid valve?

A solenoid valve is the automatic tap that controls that flow of water to an irrigation zone. Solenoid Valves are automatically operated by an irrigation controller which is programmed to tell the solenoid valve when to open & close.

How many solenoid valves should I use?

The number of solenoid valves you use depends on the size of your garden & the flow output of your water supply. The number of litres per minute that are available will determine the number of sprinklers or drippers you can operate at any one time. Once your garden is divided up into each section using that information, you’ll need one solenoid valve to operate each one individually.

What is a master valve, and do I need one?

A master valve is installed upstream of the solenoid valves being used to control each irrigation zone. They’re not mandatory, but they are a good idea as installing one increases the life-span of each valve by protect the valves downstream from the constant pressure that would otherwise be applied. The way it works is, every time a zone is programmed to come on the master valve also switches on, providing the flow, but when all the zones are off, the master valve closes, holding back the flow & pressure of the water supply. Simply, it’s kind of like an irrigation insurance policy.

Can I just use electrical tape on my cable joins?

Being exposed to the weather, water damage will occur any where water can get in. Electrical tape isn’t quite water tight & over time water will creep into the circuit & create havoc & void all warranties. For this reason you should always use waterproof cable joins like heat shrinks.

My solenoid is staying on, how can I fix it?

Nearly all of the time, a solenoid valve staying open is caused by debris caught in the diaphragm. Even the finest debris can cause the valve not to seal shut, causing a constant leak. Other cause can be: Not enough flow because the irrigation zone is too small or, not enough pressure, the valve needs the pressure to seal shut.

Can I use my solenoid valves off a gravity feed?

Unless your tank located is upwards of 20m above your valves, gravity feed will not provide enough pressure for your valves to reliably open & close. It is not recommended.

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
0%
(0)
0%
(0)
20%
(1)
L
Lindsay T. (Perth, WA)
Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.)(DC Latching Coil

Did not work with my hunter controller, purchased generic ones at local hardware, they worked fine they had no + or - wire.

Hi Lindsay, I'm sorry this looks as though you may have purchased the 12v DC Latching model (compatible with battery controllers), when the 12v AC (compatible with plug-in controllers) is what was needed. If you like to arrange for then to be shipped back for a refund, please call or email & we can certainly assist.

A
Alan C. (Brisbane, QLD)
Hunter Solenoid Valves

Sunshower provide excellent service at a good price for these valves.

F
Frank L. (Adelaide, SA)
Irrigation solenoid valve, flow control and bleed with latchind DC coil.

These valves are excellent. Used them for 2 years on a community garden and performed faultless when controlled by a Torro Controller.

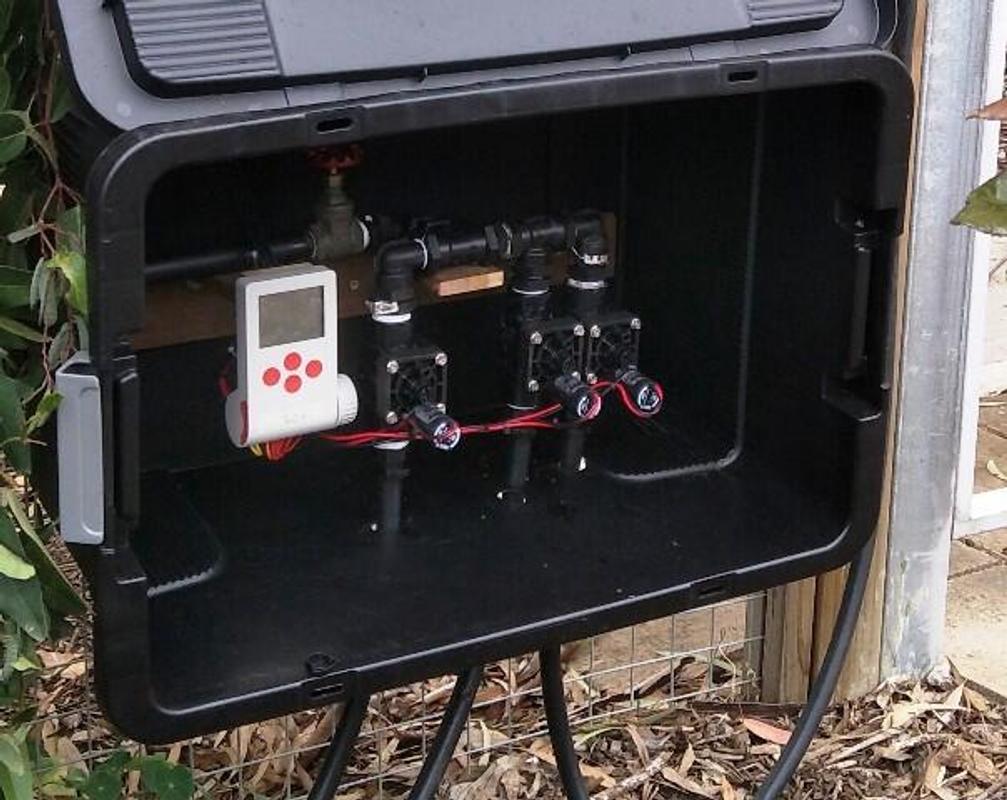

Well designed for maintenance in the field, with bolt fixed with retainers to prevent accidental loss. The photo shows one of two cabinets. We have 7 solenoids in total. The 2 controller have 8 stations and 3 start times on each, so the valves can be operated one at a time with full mains water pressure.

R
Rob G. (Brisbane, QLD)

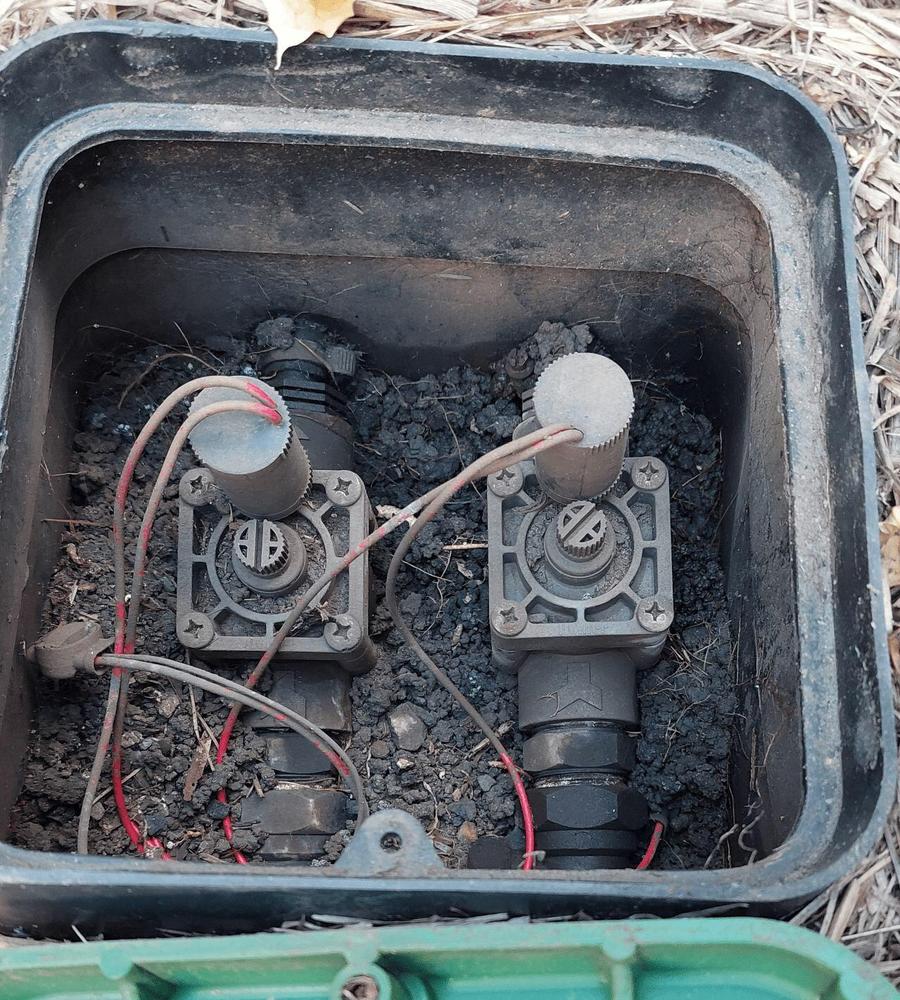

looks exactly what i need 20yrs on

replacing the solenoid and diaphram

H
Hermanto T. (Sydney, NSW)
 Hunter PGV Solenoid Valve 25mm (inc. Flow Cont.)

Products as described and website very helpful
